■OUTPUT FORCE：60kn
■STROKE：42mm
■PUNCHING TIMES (SATURATION VOLTAGE)：100
■NUMBER OF BATTERY：1
■CHARGER：1
■CHARGING TIME：1h
■CRIMPING MOLD：16,25,35,50,70,95,120,150,185,240,300mm²
■PUNCHING MOULD：22.5,28.3,34.6,43.2,49.6,61.5mm
■BLADE：1 pair
■CRIMP ADAPTER：1 pair
■PUNCHING ADAPTER：1 pair
■3/4,16UNTROLLEY：1
■7/12,20UN TROLLEY：1
■WASHER：1
■CYLINDER SEAL：1set
■SAFETY VALVE SEAL：1set
■Crimping Function
■Copper crimping terminal: 16-300mm²
■Aluminum crimping terminal: 10-240mm²
■Cut Function
■Cutting range: φ40mm copper and aluminum wire and copper-aluminum armored cables
■Punching Function
■Punching range: round die φ3.5mm
■The following mild steel plate φ22.5-61.5mm

Adopts brushless technology for longer service life and easy maintenance.

Brushless design eliminates carbon brushes, reducing power loss and motor heat generation.

Power-saving design extends crimping runtime by 30%.

Spark-free motor operation, suitable for a wider range of working environments.

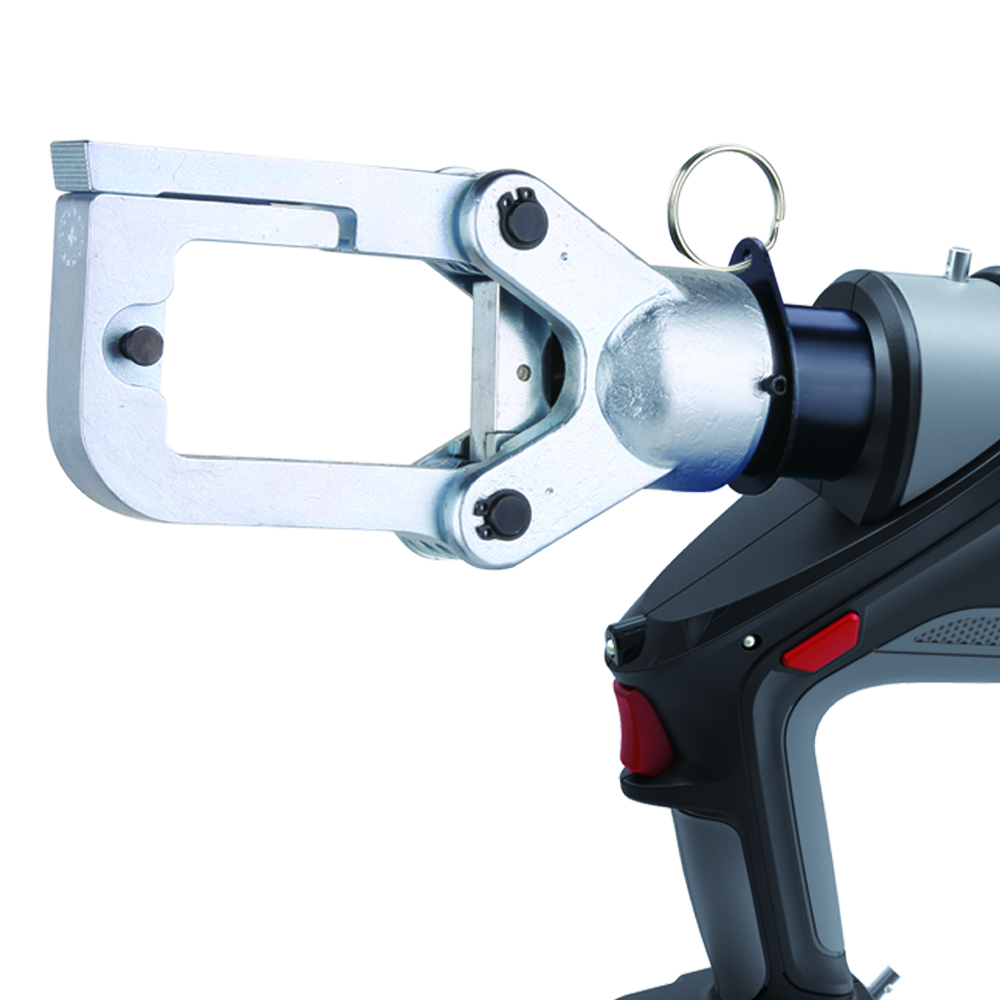

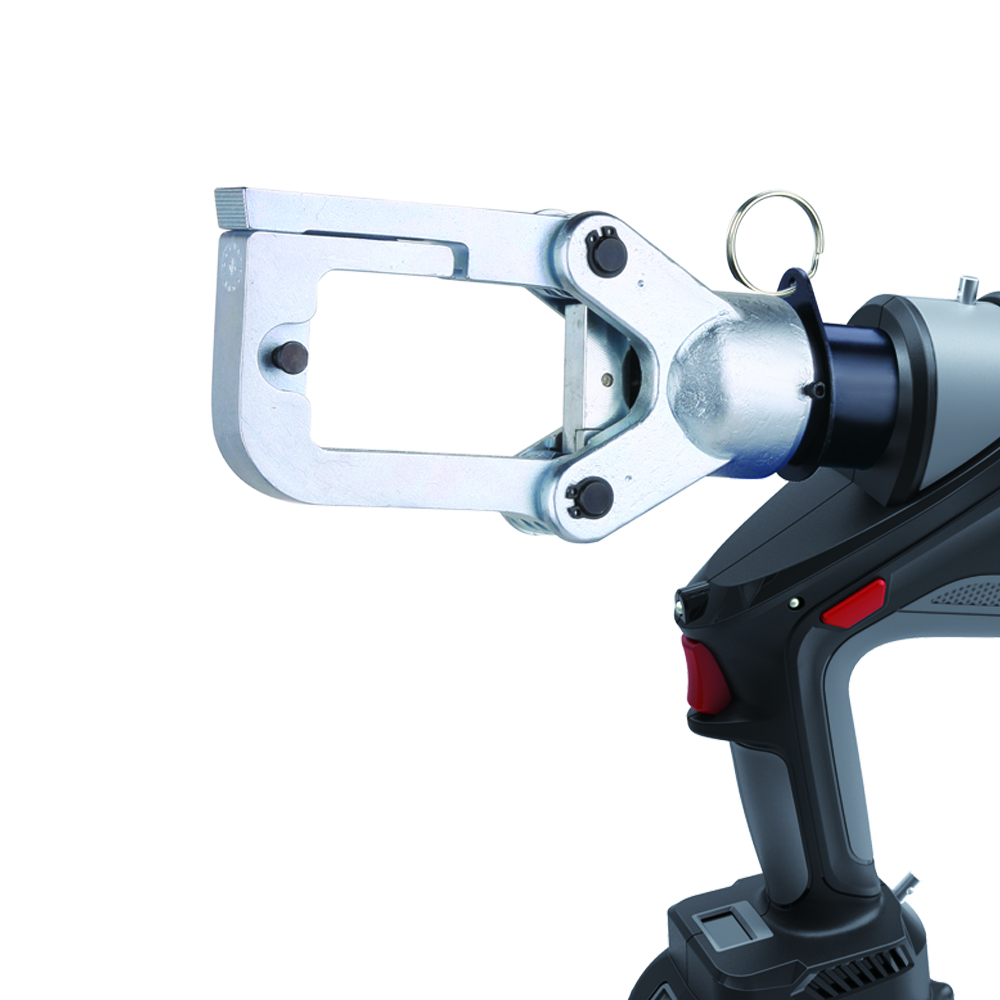

Open-type working clamp head with 350° free rotation.

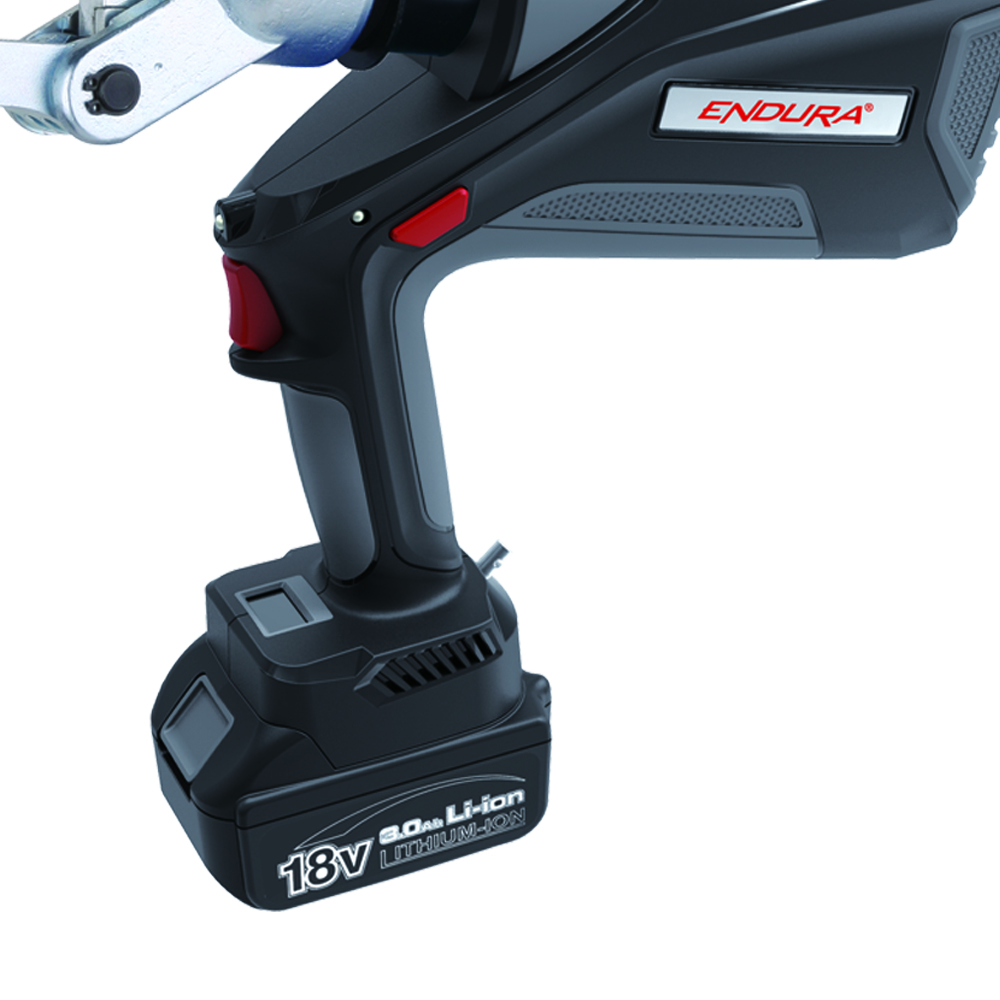

Equipped with LED work light, OLED display, high-performance lithium-ion battery, one-touch crimping control and one-touch manual reset.
